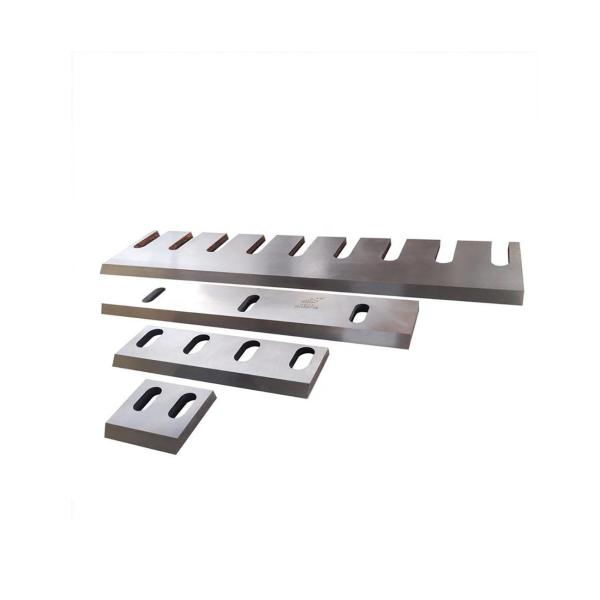

Stainless Steel Plastic Grinder Blades For Cutting Pet Pvc Rubber

Stainless Steel Plastic Grinder Blades For Cutting Pet Pvc Rubber

Description:

When selecting the material for granulator blades, the key factors to consider are:

1,Hardness and Wear Resistance:

• The material needs to have high hardness to maintain a sharp cutting edge and resist abrasive wear during the granulation process.
• Harder materials like alloy steel and tungsten carbide provide superior wear resistance and extended blade life.
• Softer materials like plain carbon steel will wear out more quickly, leading to more frequent blade replacements.

2,Impact Toughness:

• Granulator blades are subjected to significant impact loads during operation, especially when processing hard or fibrous materials.
• The blade material must have sufficient impact toughness to withstand these loads without chipping, cracking, or breaking.
• Materials like alloy steel exhibit good impact resistance, while brittle materials like pure tungsten carbide may be more susceptible to impact-related failures.

3,Thermal Stability:

• Granulation can generate significant heat, which can affect the blade's structural integrity and cutting performance.
• The blade material should maintain its hardness and strength at the elevated operating temperatures to ensure consistent performance.
• Materials with good thermal stability, such as alloy steels, are preferred over materials that may soften or degrade at higher temperatures.

4,Manufacturability:

• The ease and complexity of manufacturing the blades from a particular material is an important consideration.
• Materials like alloy steel can be relatively straightforward to machine and fabricate, while specialized materials like tungsten carbide require more advanced manufacturing techniques, such as powder metallurgy and high-temperature bonding.
• The manufacturing complexity can impact the overall cost of the blades.

5,Cost-Effectiveness:

• The initial cost of the blade material, as well as the long-term operating costs associated with maintenance and replacement, must be balanced against the performance requirements.
• While premium materials like tungsten carbide may provide superior performance, the higher upfront cost may not always be justified, especially for less demanding applications.
• A cost-effective solution that offers a suitable balance of performance and cost is often the optimal choice.

Granulator Blade Specifications:

The typical blade materials used in granulators and their relative advantages are:

Alloy Steel:

1,Advantages:

• Good balance of hardness, wear resistance, and impact toughness
• Relatively lower cost compared to specialized materials
• Easier to manufacture and maintain

2,Disadvantages:

• May not offer the highest wear resistance compared to specialized materials

Tungsten Carbide:

1,Advantages:

• Exceptional hardness and wear resistance
• Excellent cutting performance and edge retention

2,Disadvantages:

• Higher manufacturing cost and complexity
• Potential for brittleness and susceptibility to impact damage

High-Speed Steel (HSS):

1,Advantages:

• Good balance of hardness, toughness, and thermal stability
• Relatively lower cost compared to tungsten carbide

2,Disadvantages:

• Lower wear resistance compared to alloy steel and tungsten carbide
• May require more frequent blade replacements

Ceramic (e.g., Alumina, Silicon Nitride):

1,Advantages:

• Extremely high hardness and wear resistance
• Excellent thermal stability

2,Disadvantages:

• Very brittle and susceptible to impact damage
• Challenging and expensive manufacturing process
• Limited availability and application in granulators

The selection of the blade material depends on the specific requirements of the granulation process, such as the material being granulated, the desired product quality, the production volume, and the overall cost considerations.

In general, alloy steel provides a good balance of performance and cost-effectiveness, making it a widely used material for granulator blades. Tungsten carbide is chosen when the highest wear resistance and cutting performance are required, despite the higher cost. High-speed steel can be a more economical alternative in less demanding applications. Ceramic blades are relatively rare in granulators due to their brittleness and high manufacturing complexity.

Picture:

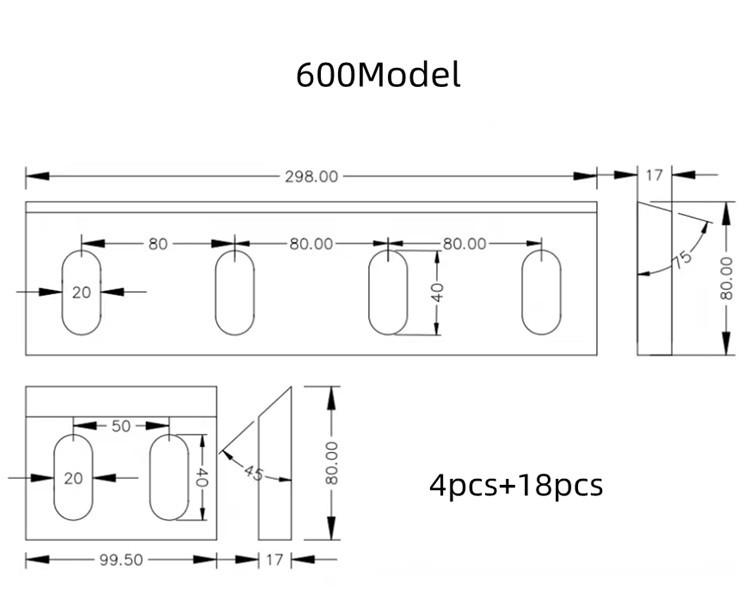

Size:

Applications:

Packing & Delivery:

steel plastic grinder blades

stainless steel plastic grinder blades

steel plastic granulator blades

Stainless Steel Plastic Grinder Blades For Cutting Pet Pvc Rubber Images
